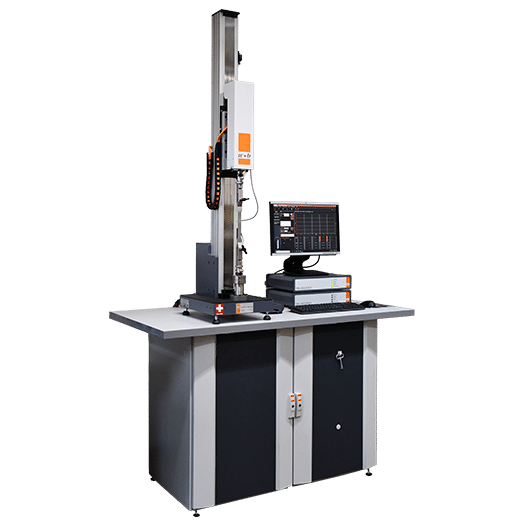

The system is modular designed with two frame sizes so that the force and torque capacity can be selected application oriented.
Frame Size LFM-L 10 for axial forces up to 10 kN and torque moments up to 60 Nm
Frame Size LFM-L 25 for axial forces up to 25 kN and torque moments up to 200 Nm
This axial-torsional systems provide the following test possibilities

Static Axial (Tension & Compression) Test Possibility
Static Torsion Test Possibility
Multi-axis (axial / torsional) Independent Control Possibility
Multi-Axis (axial / torsional) Dependant Control Possibility
Typical Test Standards

ASTM F543
ISO 80369
ISO 11040-4
ISO 11608-2
ISO 10964
ASTM D7860
ISO 7800
ASTM A938
And others
High-Lights:

Selectable Force & Torque Capacity to match your requirements
Modular design allows to upgrade machines from axial to biaxial capability at any time
24 Bit high-resolution analogue-digital conversion for force and torque signals (transducer).
Digital crosshead and torque angle measurement system
Unlimited torsional rotations with force-torque transducer mounted on lower base plate
Both axial and torsional drive controlled by a brush-less high responsive and maintenance-free AC serovomotor providing fast starts and stops, best control and highest accuracy at low noise level.
