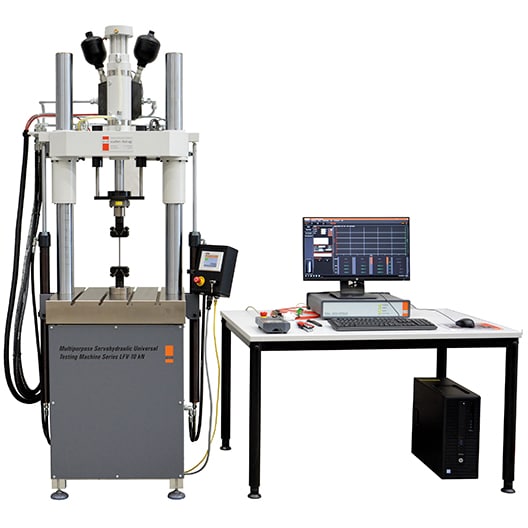

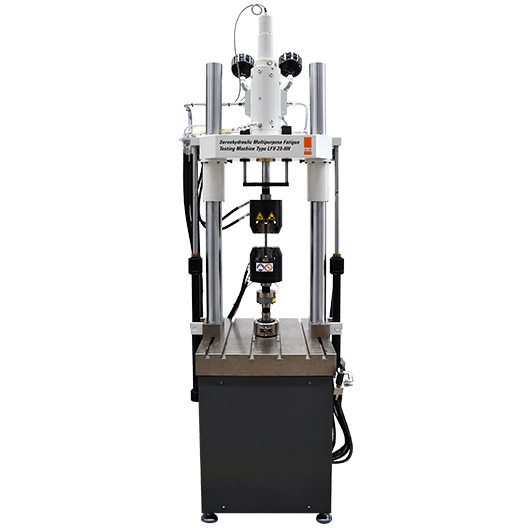

The fatigue rated actuator is conveniently mounted in the upper crosshead. The system incorporates an extremely versatile lower integral T-slot platen. The corrosion resistant T-slot platen is well suited to mount grips & fixtures, specimens and any kind of engineering components or
finished goods.
Typical applications includes monotonic (static) tension, compression, bend, shear and other tests, durability and fatigue tests including fatigue crack growth testing, testing of components and manufacturing assemblies for the biomedical, automotive, aircraft, electronic, plastic injection moulding and other industries.

Key Features

Versatile design for testing components and a variety of materials
Compact and space saving due to on integrated hydraulic
power pack
Latest digital control electronics with closed loop control and data acquisition rate, and with self-identification transducer coding
Rigid machine frame of high stiffness, provides superior axial and lateral stiffness and guarantees robust, durable and long-term operation
Test space adjustment available from mechanical lift to automatic system
Hydraulic passive clamping (Version HH) system assures that the upper crosshead is clamped to the column without any hydraulic pressure applied.
Double acting, double ended, and equal area Servo Actuator with Hydrostatic 4-Pocket Bearings for the best friction free static and dynamic performance with nearly service-free operation.
Highly accurate load cell and digital piston stroke transducer
High performance Servovalve(s)
