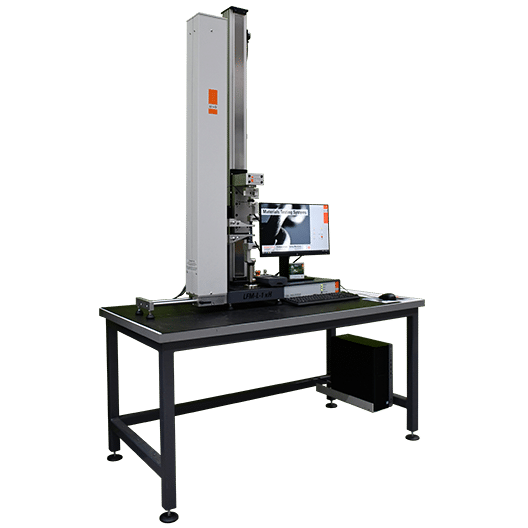

The MFL can be connected to partly or fully automatic testing machines with hydraulic grips. The strain can be measured from the elastic range to fracture for almost all types of samples. When used in combination with the transverse models, the MFL extensometers are ideal for testing the deep-drawing properties of thin sheets. The MFE units are also available for the use in environmental chambers with extended measuring arms. The available temperature range is from -50°C to +350°C.
Key Features

Accuracy grade 1 from 1 mm travel and accuracy grade 0.5 mm from 8 mm travel.

Long measurement travel of 900 mm respectively 1200 mm

Easy and quick adjustable gauge lengths from 10 mm to 100 mm in steps of 5 mm

Automatic opening and closing of the measuring arms

Low clamping and activating force

Extensible with MFQ-A unit for additional transverse measurement
