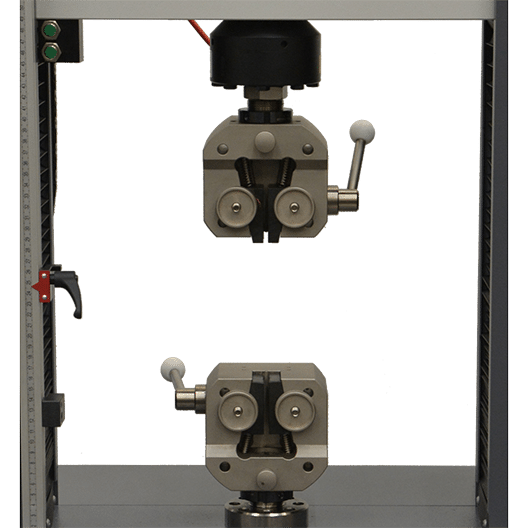

Self-Tightening Wedge Grips Series 243 up to 50 kN
Self-Tightening Wedge Grips Series 243 up to 50 kN - Image 2

Self-Tightening Wedge Grips Series 243 up to 50 kN

The 243 series of multipurpose self-tightening wedge grips are available for 20 and 50 kN tensile loads.
These grips are quick and easy to operate via lever arm.
The open front construction provides easy change of the jaws (inserts) from the front. Available are jaws for flat specimens with thickness up to 16 mm and round specimens having diameters up to 20 mm.
Website: WalterBai

Inquiry Request
Category Brand:

Features

Self-tightening during test minimizes slippage
Easy specimen insertion
Rapid specimen clamping and removal via lever arm
Easy and quick change of jaws (inserts)
Easy installation and removal via standard PIN connection
Accessories

Flat specimen centring device
Special Jaws (inserts) for round specimens up to 26 mm
Special Grip Body and jaws (inserts) for flat specimens up to 25 mm thickness

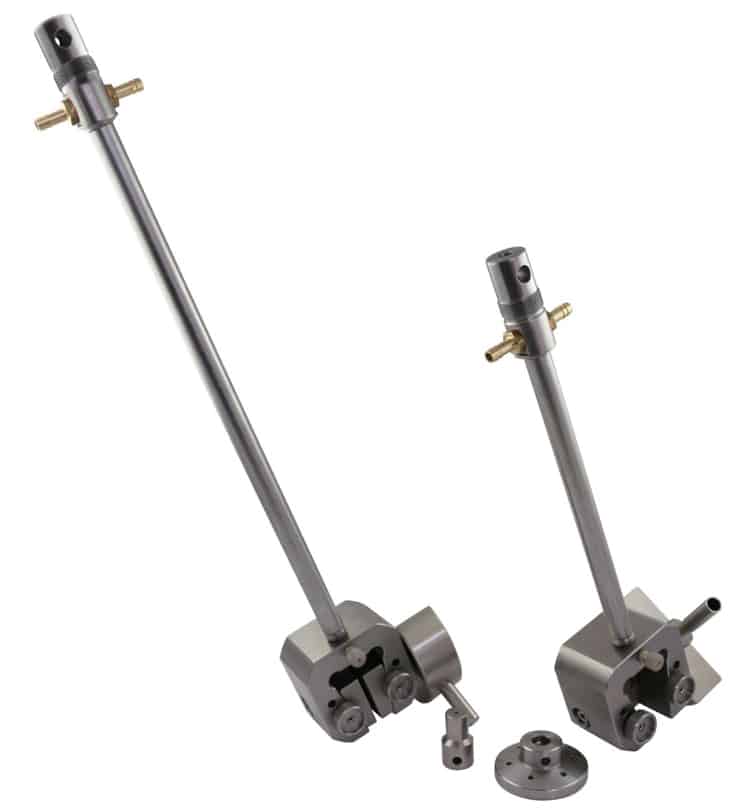

Extension Rods for use of the grips inside the environmental chamber.
