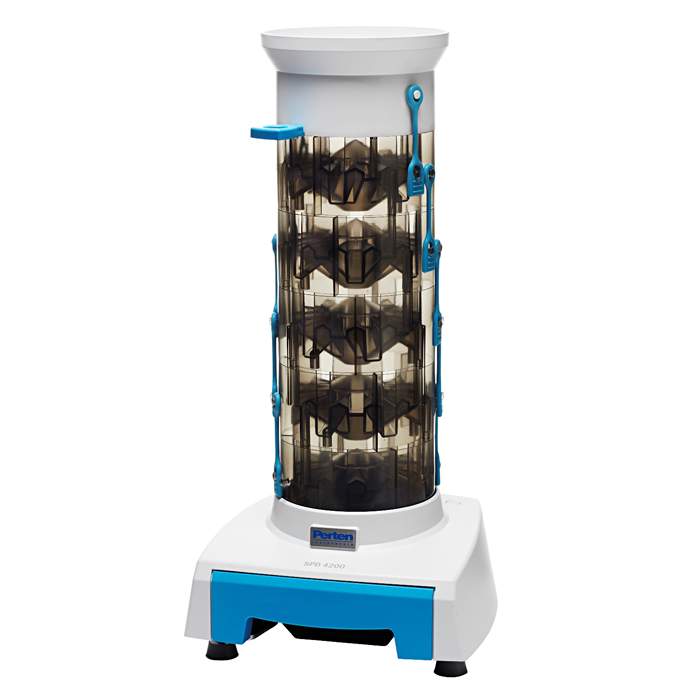

Sequential Precision Divider SPD 4200
Some grain analyses require a very small sample. However, it needs to be representative of
the entire quantity. The design of older dividers forces users to divide the sample in multiple
steps which takes time and infl uences accuracy.
The SPD 4200 single step divider separates a representative sub-sample from a larger quantity.
Consisting of 5 divider sections that each split the sample into 2 halves, the SPD 4200 separates a
3.125% sub-sample in less than 15 seconds. Simply pour the sample into the top funnel and open
the shutter to let the sample fall through the divider. When ready open the tray to retrieve the
sample. The system is gravity driven and has no moving parts. The transparent divider sections
make it easy to verify that no sample is remaining in the divider removing the risk of sample
cross-contamination.
Features & Benefi ts
Fast: 15 seconds from start to fi nish.
Easy to use: Simply pour in the sample and let it fall through the
divider by gravity. Confi dently used by non-technical operators.
Accurate: The unique design provides a highly representative sub-sample.
Reliable: Simple, robust design with no moving parts or motors
provides exceptional instrument life and low cost of ownership.
Flexible: If a larger sub-sample is desired, the SPD can be used with
fewer divider sections and if additional sub-samples are required, run the
sample again after removing the fi rst sub-sample.
Compact: Small footprint saves space.
Uses
Sub-sampling for mycotoxin testing, performing
visual grain inspection, performing malt
germination tests, or any other application
where a small representative sample is required.
Specifi cations
Size (H x D x W): 610 x 290 x 290 mm
Net weight: 4 kg
Grain types: Small grains such as Rice,
Wheat, Barley, Rapeseed (Canola), Oats
Sample volume: Max 1 liter
