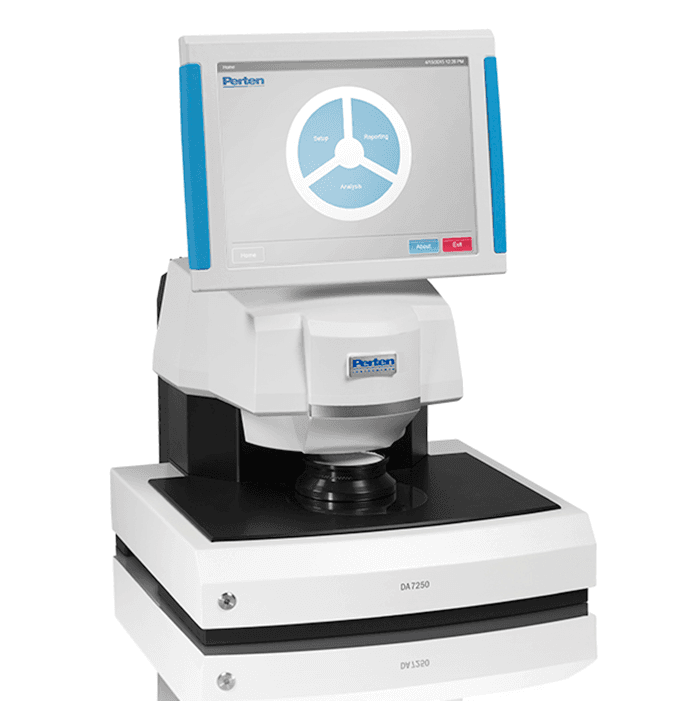

NIR reflectance Analyzer using Diode Array technology.
• Pre-calibrated for many grain, flour, food & feed products
• Large versatility in measurement accessories including
disposable cups. Use of open faced sampling dishes,
no need for cleaning. Rabid exchange of sample accessories.
• Rotating sample tray, measurement area of 108cm2.
• Analysis time of 6 seconds.
• Sample size from a few grains to 380 ml.
• Designed for in process use, 5-40 C ambient temperature.
• IP 65, completely sealed against dust, no fan or other opening.
• Sanitary design, SD, version available for extra high hygienic
demands.
• Internal touch screen and Results plus interface for routine
Operation.
• Built-in computer for stand-alone usage, Windows 7 operating system.
• Calibrations made by Unscrambler X or Perten proprietary
calibration tool.
• Calibration transferability between DA 7250 instruments and
Perten process DA 7440 and DA 7300 instruments.
• Netplus networking software, accessible with web browsers.
• Regression options PLS, HR and ANN.
• 256 pixel InGaAs array.
• Wavelenght range 950-1650 nm, resolution of 3.125nm /pixel.
• Thermal electrically cooled detector.
• Absorbance linearization for each pixel.
• Wavelength accuracy < 0.075nm.
• Wavelength stability < 0.001nm.
• Internal Xe lamp for continuous wavelength stability verification
• Automatic ceramic reference for absorbance scale setting.
• Optional Reference Standard Module for monitoring long term
photometric response.
• 2 year lamp life, customer replaceable lamp, spare lamp
Included.
• Weight 20 kg, dimensions 517 mm(H) x 370 mm(W) x 390 mm(D).
• 1 LAN connection, 3 USB connections.
• Power requirements 100-240 VAC 50/60 Hz, 65A.
